- Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
- PFA*- Fused solid ball
- Double tapped and plugged bosses allow for venting or draining downstream, or test port for backflow preventer
- Full port in all sizes
- Class VI positive shutoff
- 100% Lead-free
- Low torque
- Ideal for liquid, air, and backflow applications
- 200 W @ 200° F
- This cast iron ball valve has been engineered to work with any AWWA C606 grooved end piping system
| Series | Locking Handle - Standard |
| Size | 6" |
| Port Type | Full Port |
| End Connection | Grooved |
| Valve Operator | Lever Operator |
| End to End | 12.56" |
| Face to Face | 10.56" |
| Center of Port to Top | 8.31" |
| Center of Valve to Handle End | 16.79" |
| Port Diameter | 6.00" |
| Weight | 105 Lbs |
| Groove Diameter | 6.45" |
| Gasket Seat | 0.63" |
| Groove Width | 0.38" |
| Groove Depth | 0.09" |
| Grooved End OD | 6.63" |
| Pallet Quantity | 12 |

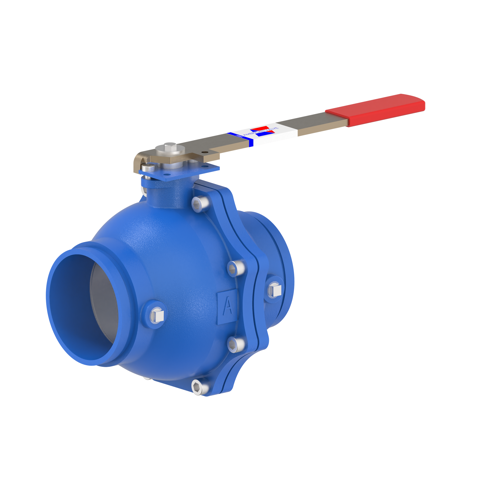

| Isometric View | Download |

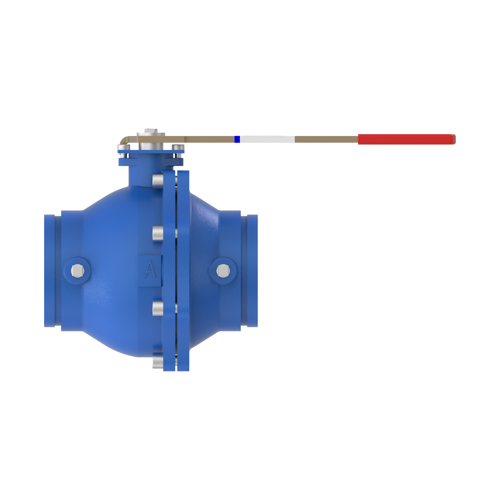

| Front View | Download |

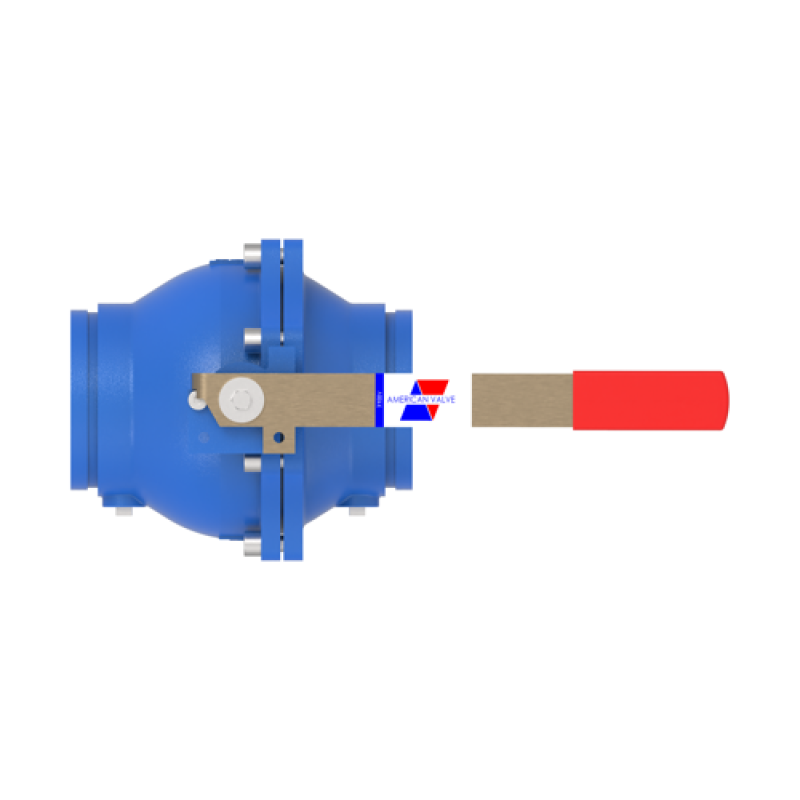

| Top View | Download |

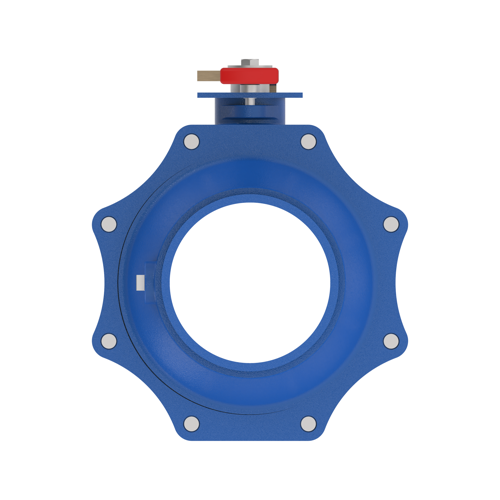

| Side View | Download |
