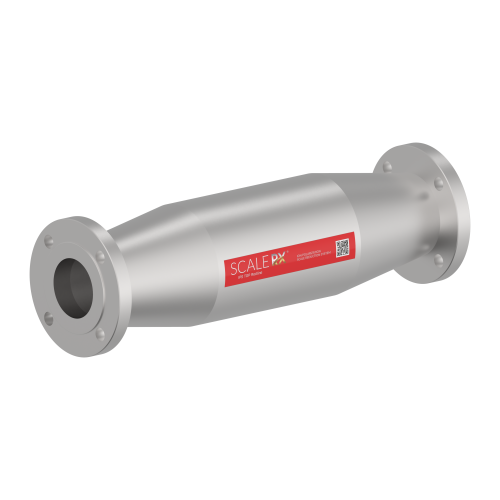

ScaleRx IPS Redline Scale Prevention System:SRX30F
Equipment water inlets shall be equipped with ScaleRX™devices to condition water and prevent Calcite scale accumulation on water heater components. No additional bypass piping or shut-off valves are required. ScaleRX should be installed in accordance with instructions included with the device.
- Stainless steel construction.
- High flow rate, minimal restriction.
- No maintenance, no external power, no filters required.
- Independent testing confirms ScaleRX reduces scale accumulation by 76%.
- Suitable for both indoor and outdoor applications.
- Connects to cold water supply.
| Series | ScaleRx IPS Redline Scale Prevention System |
| Size | 3" |
| Min and Max Pressure | 4 psi/145 psi |
| Recommended Temperature | 40°F to 100°F |
| Weight | 33.1 Lbs |
| Length in | 24.1 |
| Diameter in | 7.5 |
| Maximum Flow Rate | 88 GPM |
| Isometric View | Download |
| Front View | Download |
| Top View | Download |
| Side View | Download |
