- A536 grade 65-45-12 ductile iron body
- PFA* fused solid stainless steel ball
- Blow-out proof stainless steel stem
- Reinforced PTFE seats
- Face to face and flanged dimensions conform to ANSI Standard B16.10 which exactly match end to end dimensions of carbon steel ball valves, ductile iron gate valves, and plug valves
- Lockable in full open or closed positions
- ISO mounting pad for easy actuation
- Adjustable length/removable handles to fit into areas of limited space
- Full port through 6”
- 150 psi WSP
- 300 psi WOG
- 366° F
- This ductile iron ball valve has been engineered to replace any plug valve, carbon steel ball valve, or gate valve
| Series | Operator Nuts |
| Size | 2" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Gear Operator |
| Face to Face | 7" |
| Center of Port to Top | 6.5" |
| Flange Diameter | 6" |
| Port Diameter | 2" |
| Bolt Holes | 4 |
| Weight lbs | 25 |
| CV | 500 |
| Mounting Pad | F07 |

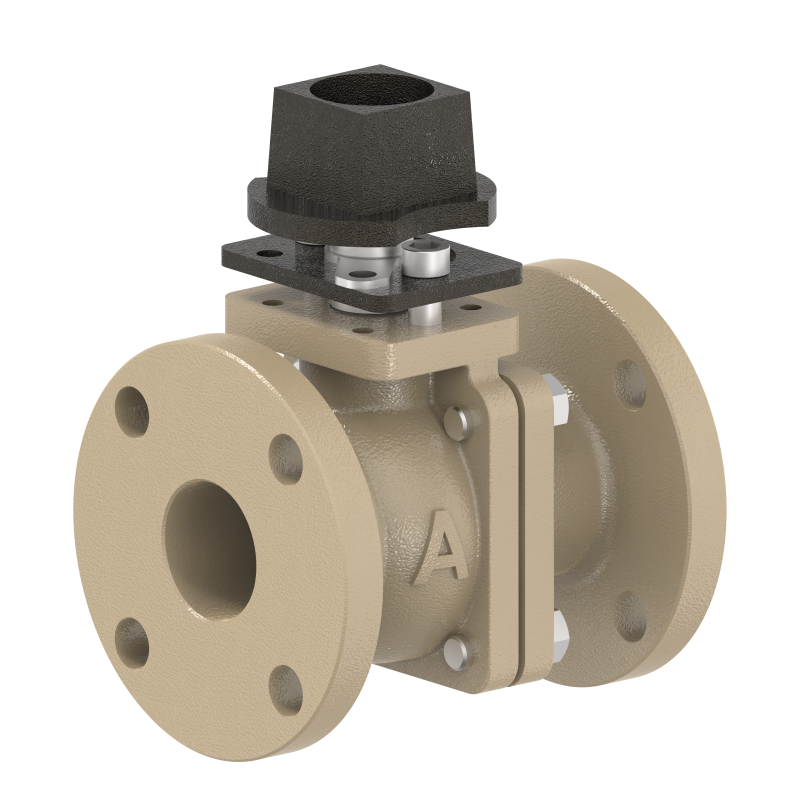

| Isometric View | Download |

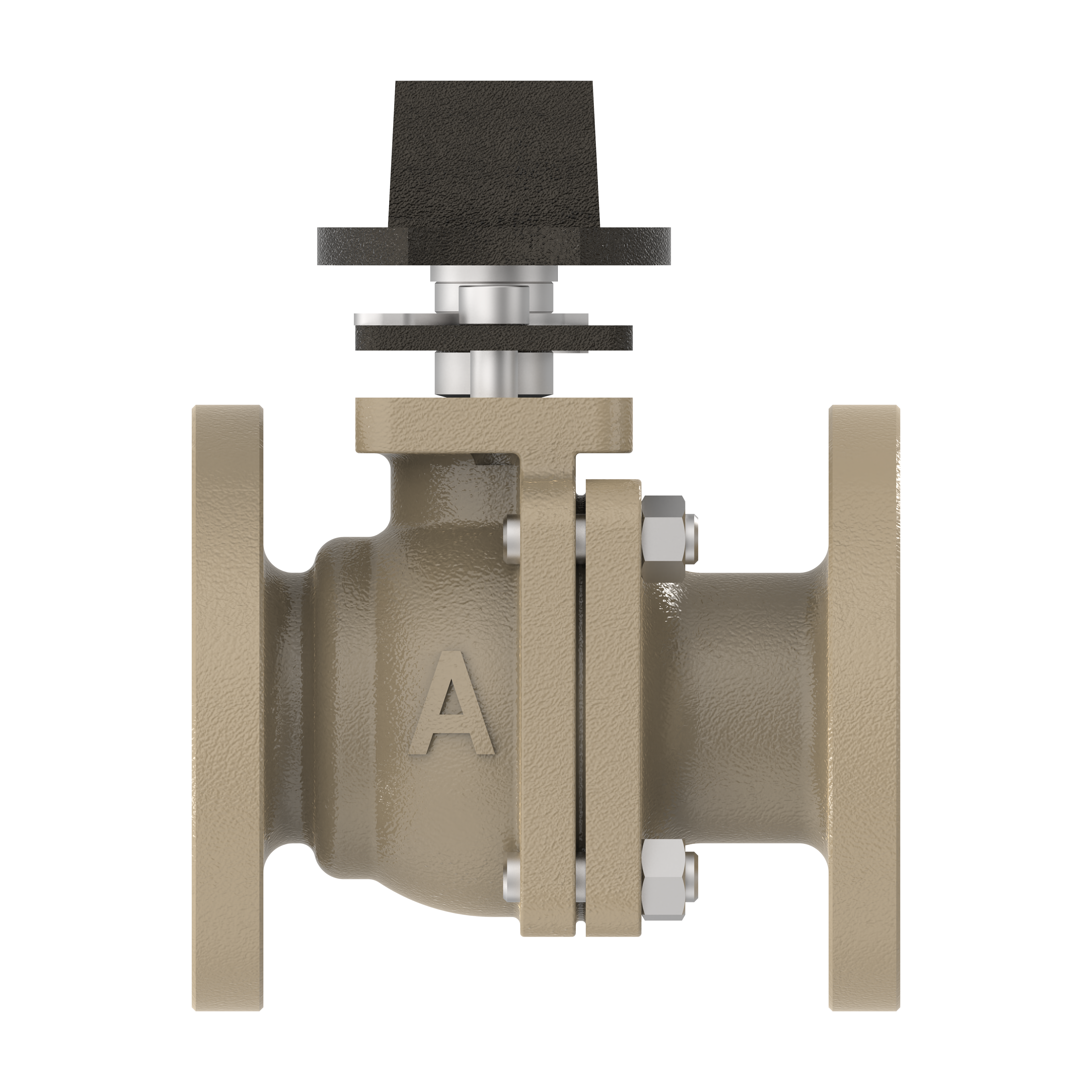

| Front View | Download |
| Top View | Download |
| Side View | Download |
