- A126 Class B cast iron body
- PFA* fused solid ball
- Blow-out proof stainless steel stem
- Reinforced PTFE seats
- Face to face and flanged dimensions conform to ANSI Standard B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves
- Lockable in full open or closed positions
- ISO mounting pad for easy actuation
- Adjustable Length/removable handles to fit into areas of limited space
- Full port through 6”
- 125 psi WSP
- 200 psi WOG
- 353° F
- This cast iron ball valve has been engineered to replace any IBBM gate valve, all iron gate valve, or plug valve.
| Series | Operator Nuts |
| Size | 3" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Gear Operator |
| Face to Face | 8" |
| Flange Diameter | 7.5" |
| Port Diameter | 3" |
| Bolt Holes | 4 |
| Weight lbs | 50 |
| CV | 1245 |
| Mounting Pad | F10 |

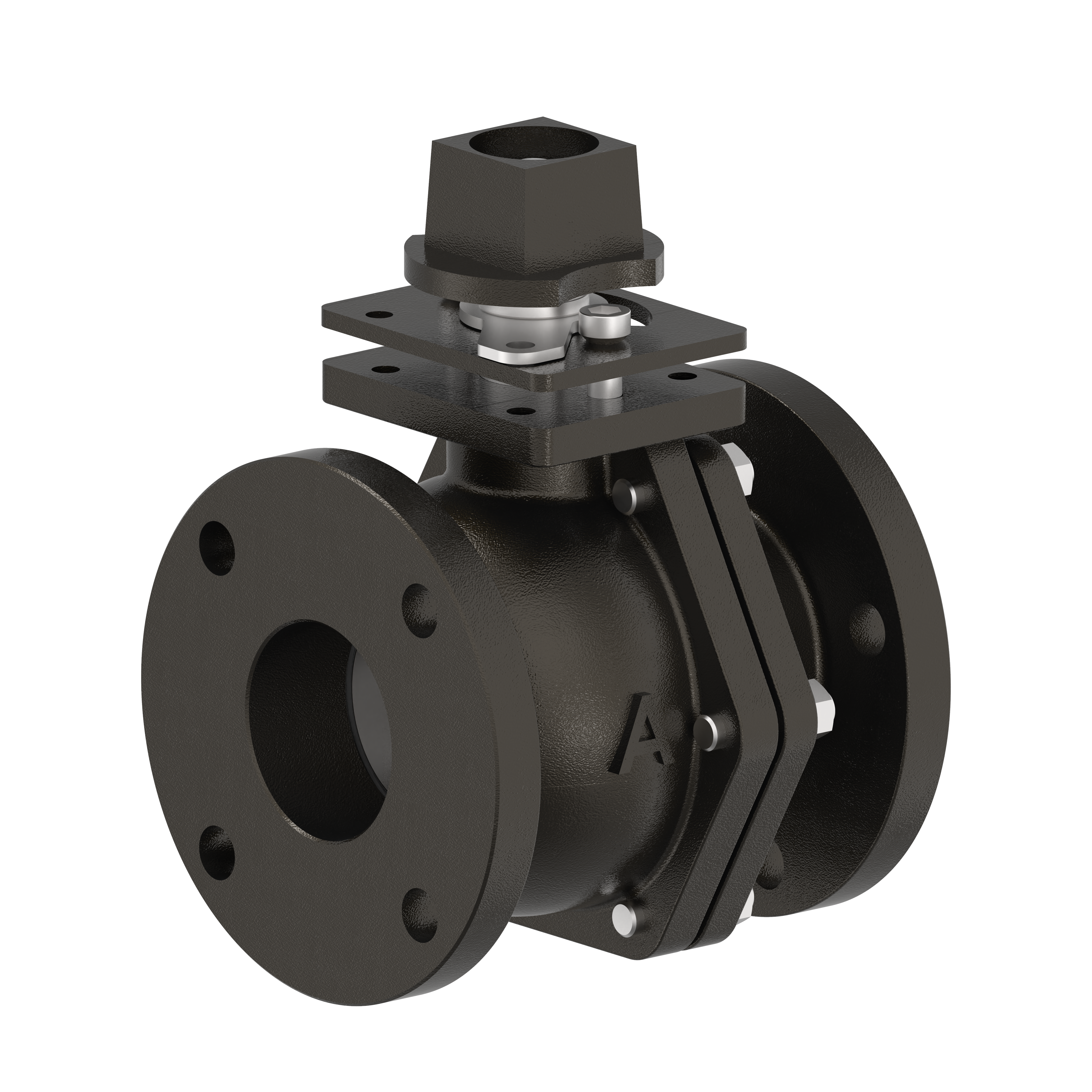

| Isometric View | Download |

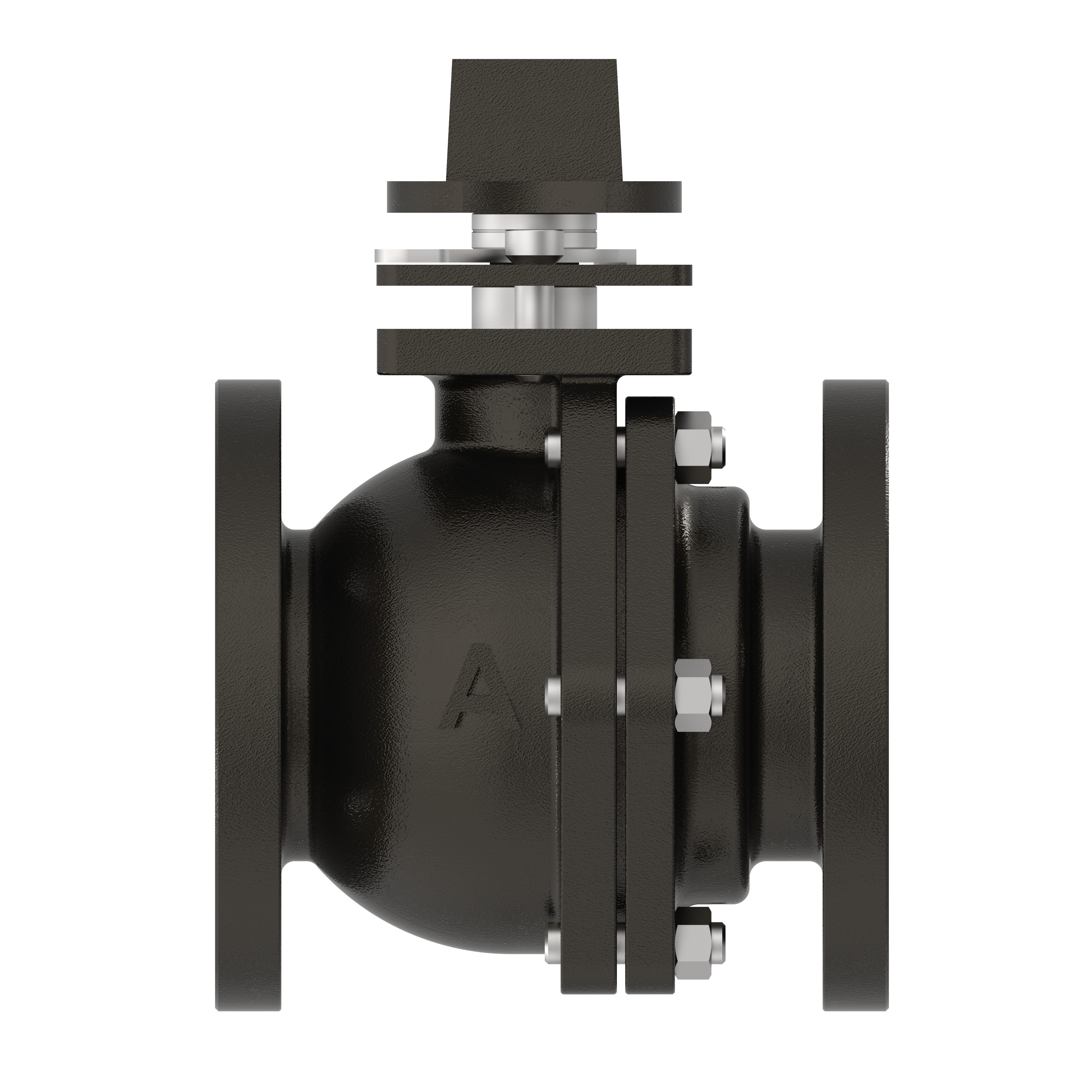

| Front View | Download |

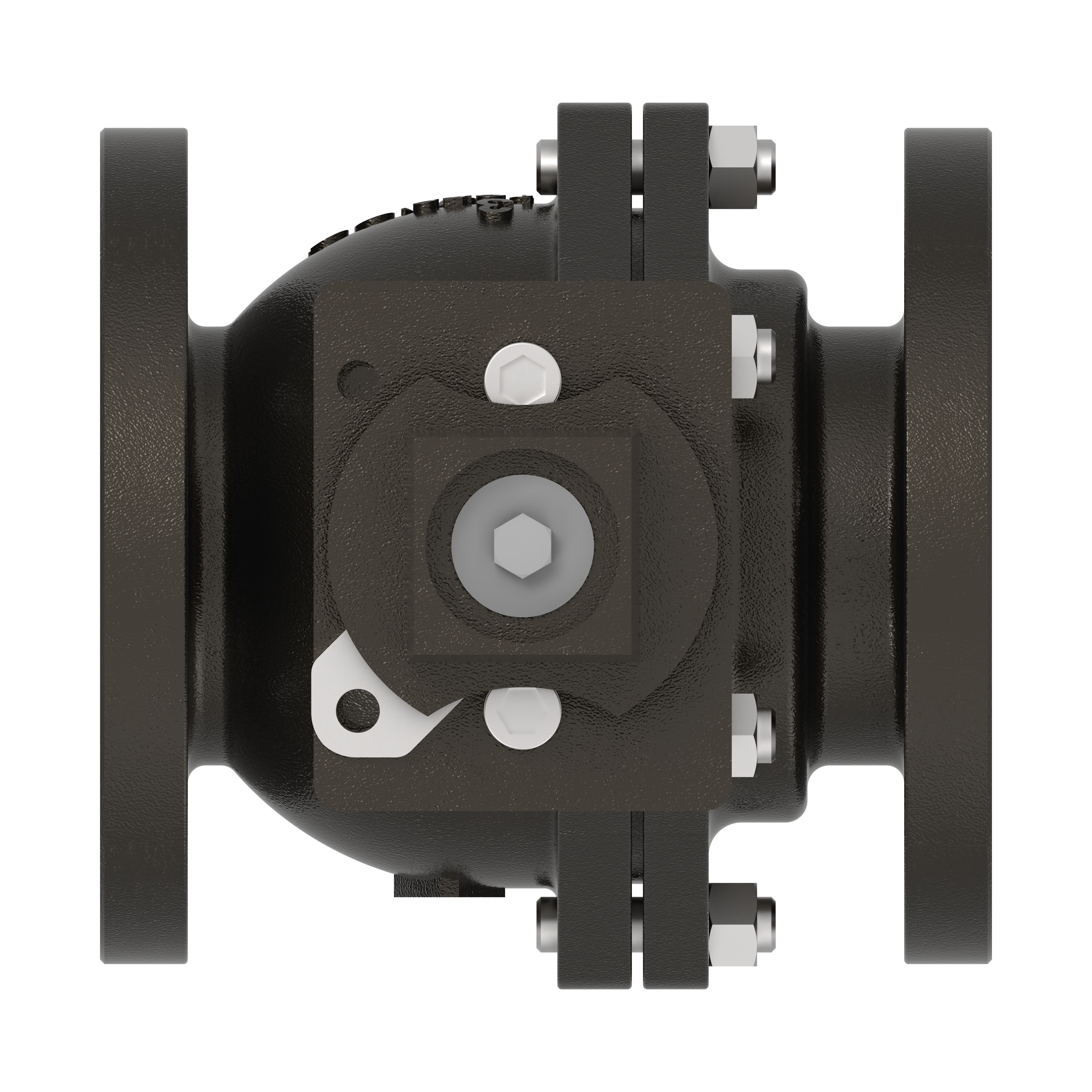

| Top View | Download |

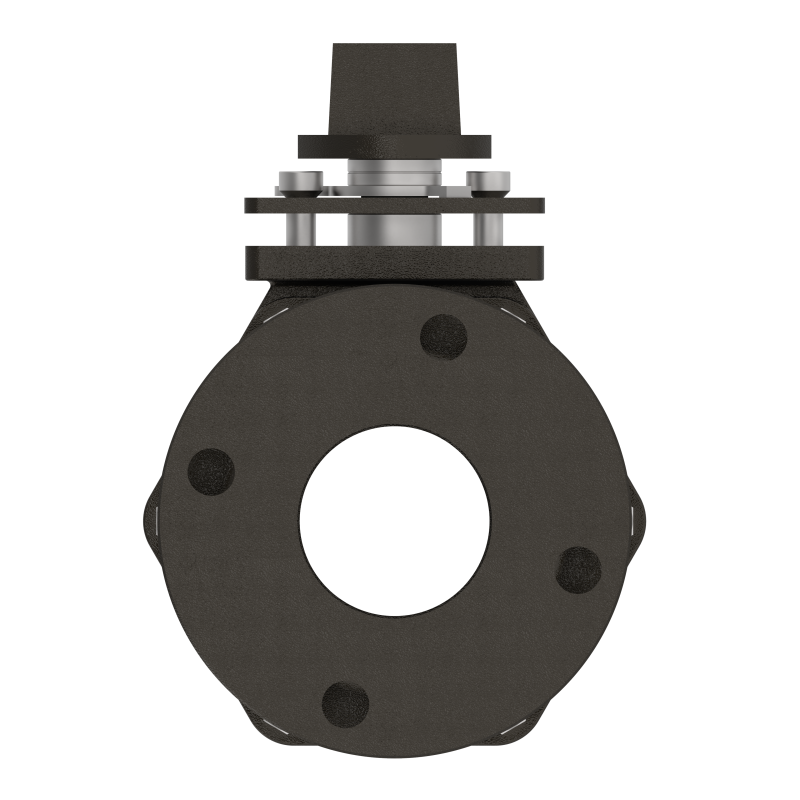

| Side View | Download |
