- Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
- PFA*- Fused solid ball
- Same end-to-end as any flanged gate or plug valve
- Tapped and plugged boss allows for venting downstream, or test port for backflow preventer
- 2” through 8” - Full port
- Class VI positive shutoff
- 100% Lead-free
- Low torque
- Ideal for liquid, air, and backflow applications
- 200 W @ 200° F
- This cast iron ball valve has been engineered to replace any IBBM gate valve, all-iron gate valve, or plug valve
| Series | Operator Nuts |
| Size | 3" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Gear Operator |
| Face to Face | 8.00" |
| Flange Diameter | 7.50" |
| Port Diameter | 3.00" |
| Bolt Holes | 4 |
| Weight lbs | 38 |
| Pallet Quantity | 48 |

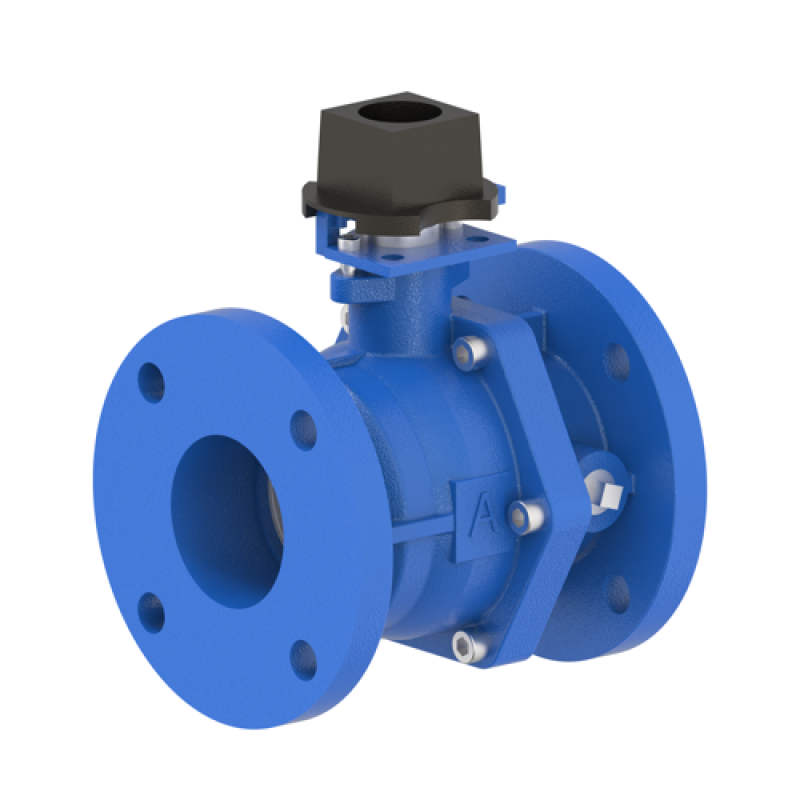

| Isometric View | Download |

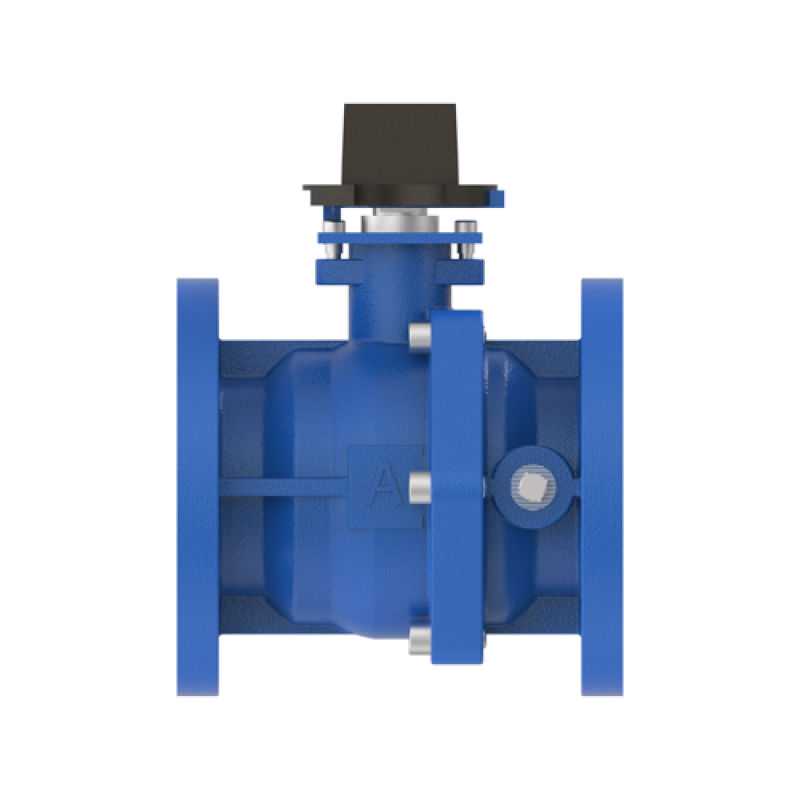

| Front View | Download |

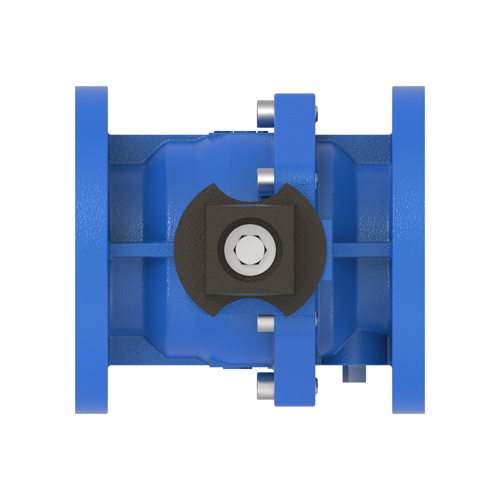

| Top View | Download |

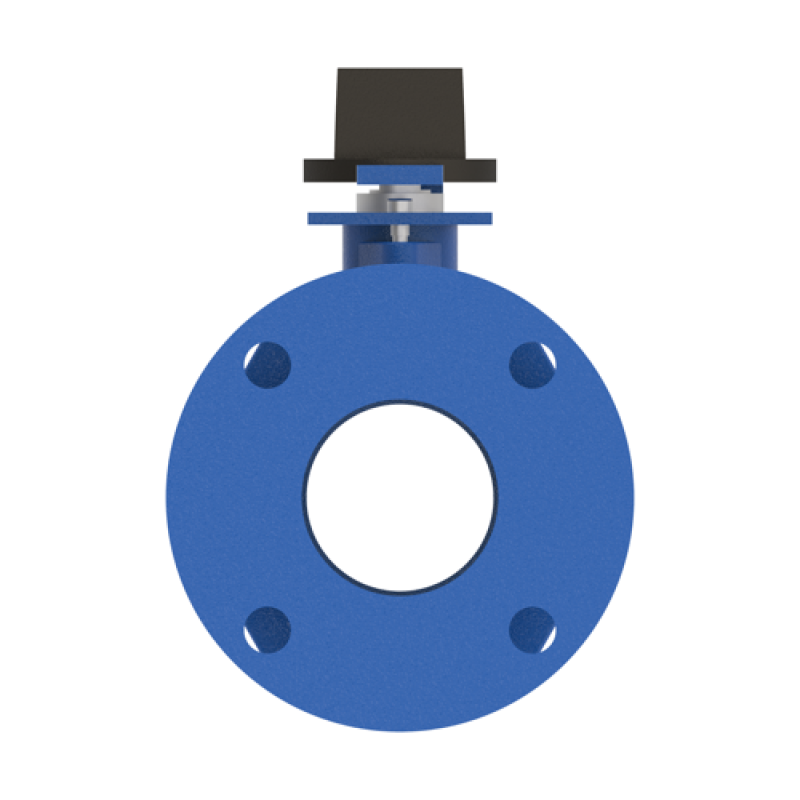

| Side View | Download |
