- Cast 316 stainless steel (CF8M)
- PFA* fused solid stainless steel ball
- Blow-out proof stainless steel stem
- Reinforced PTFE seats
- Full opening for unrestricted flow
- Lockable in full open or closed positions
- API 607 fire safe design
- Mounting pad for easy actuation
- Adjustable length/removable handles to fit into areas of limited space
- Certified to meet the requirements
- NSF/ANSI 61 and NSF/ANSI 372
- MSS SP-72
- 150 psi WSP
- 300 psi WOG
- 366° F
- This Stainless steel ball valve with PFA* fused ball has been engineered to more effectively resist corrosion and prolong valve life
| Series | Operator Nuts |
| Size | 4" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Gear Operator |
| Face to Face | 9" |
| Center of Port to Top | 9" |
| Flange Diameter | 9" |
| Center of Valve to Handle End | 16" |
| Port Diameter | 4" |
| Bolt Holes | 8 |
| Weight lbs | 73 |
| CV | 2500 |
| Mounting Pad | F10 |

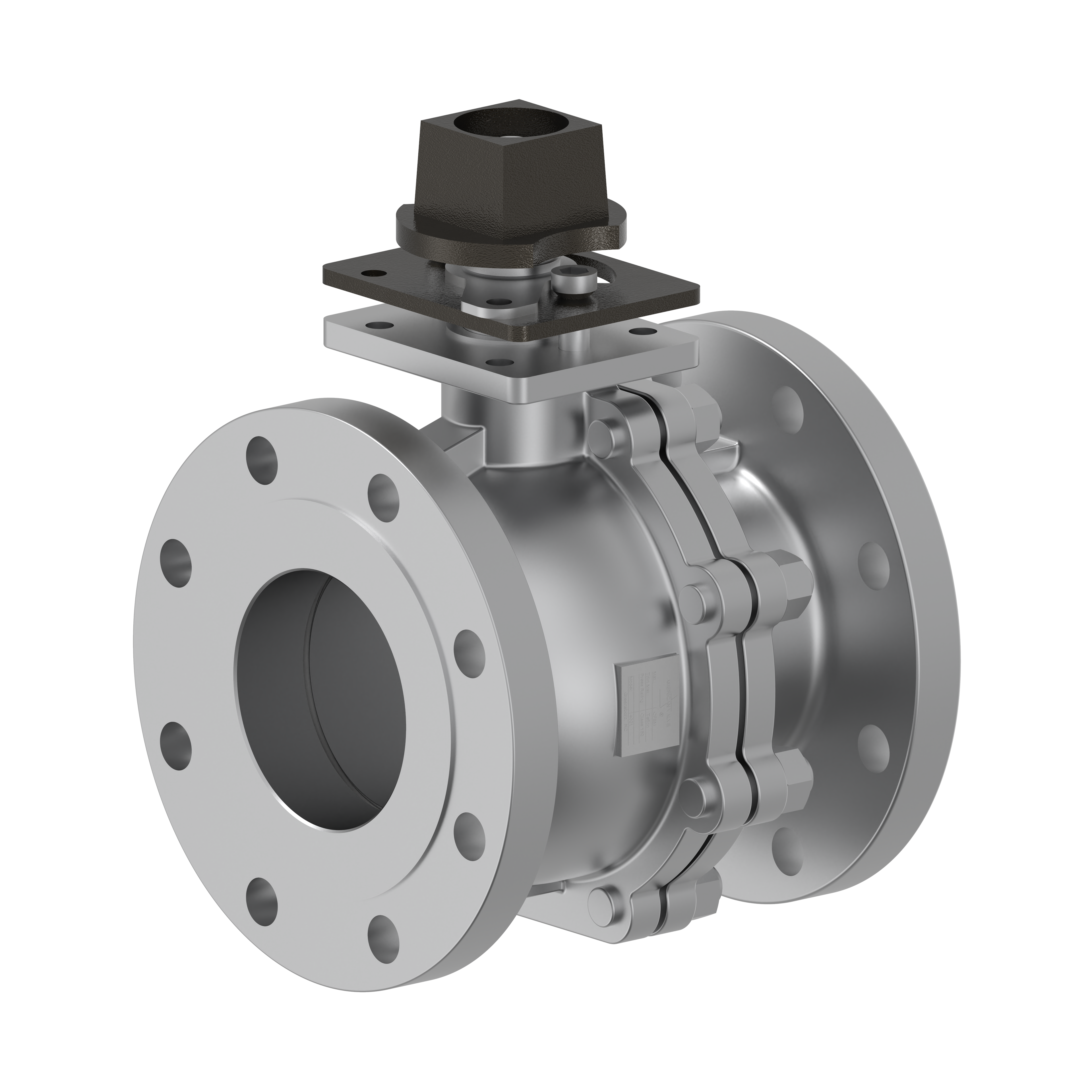

| Isometric View | Download |
| Front View | Download |

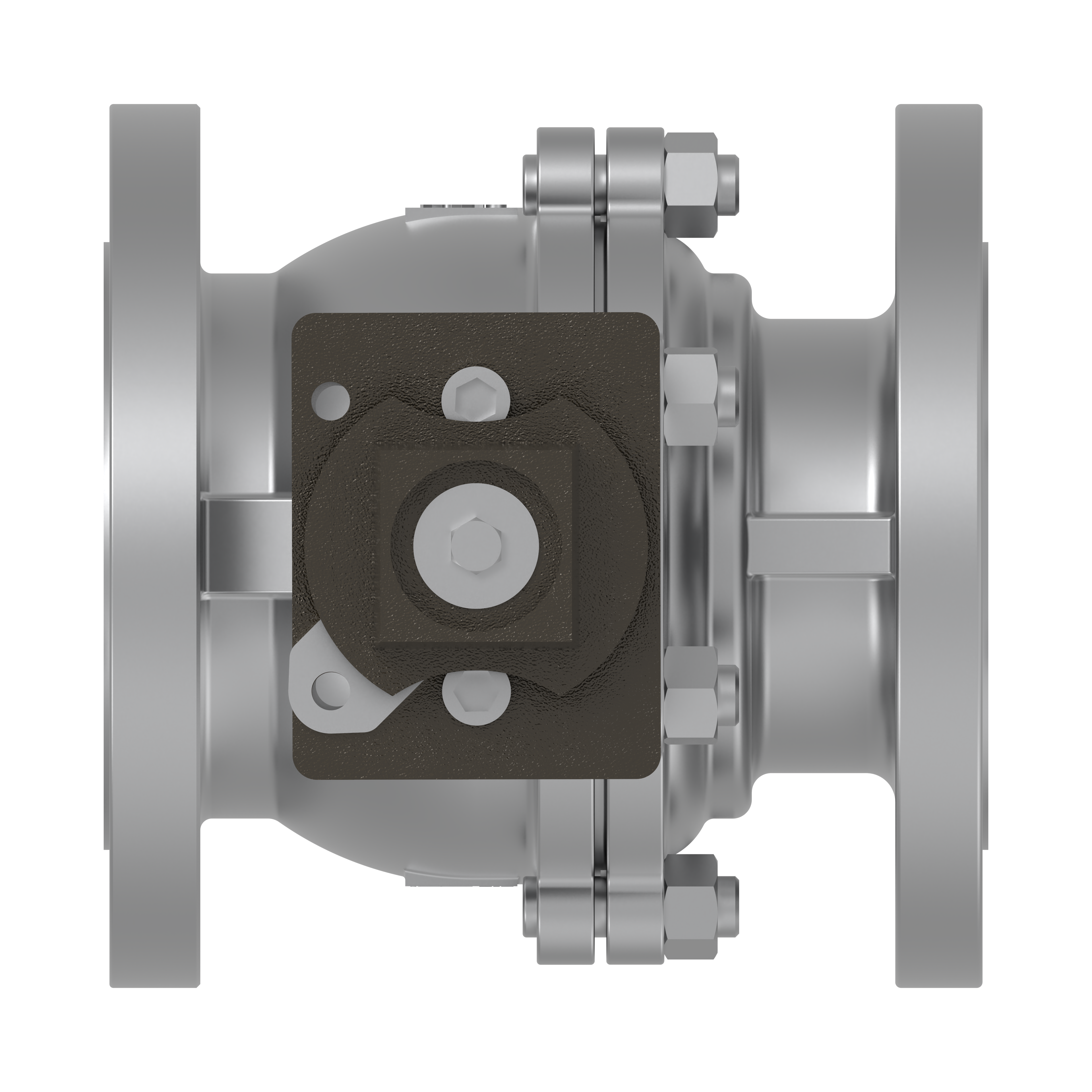

| Top View | Download |

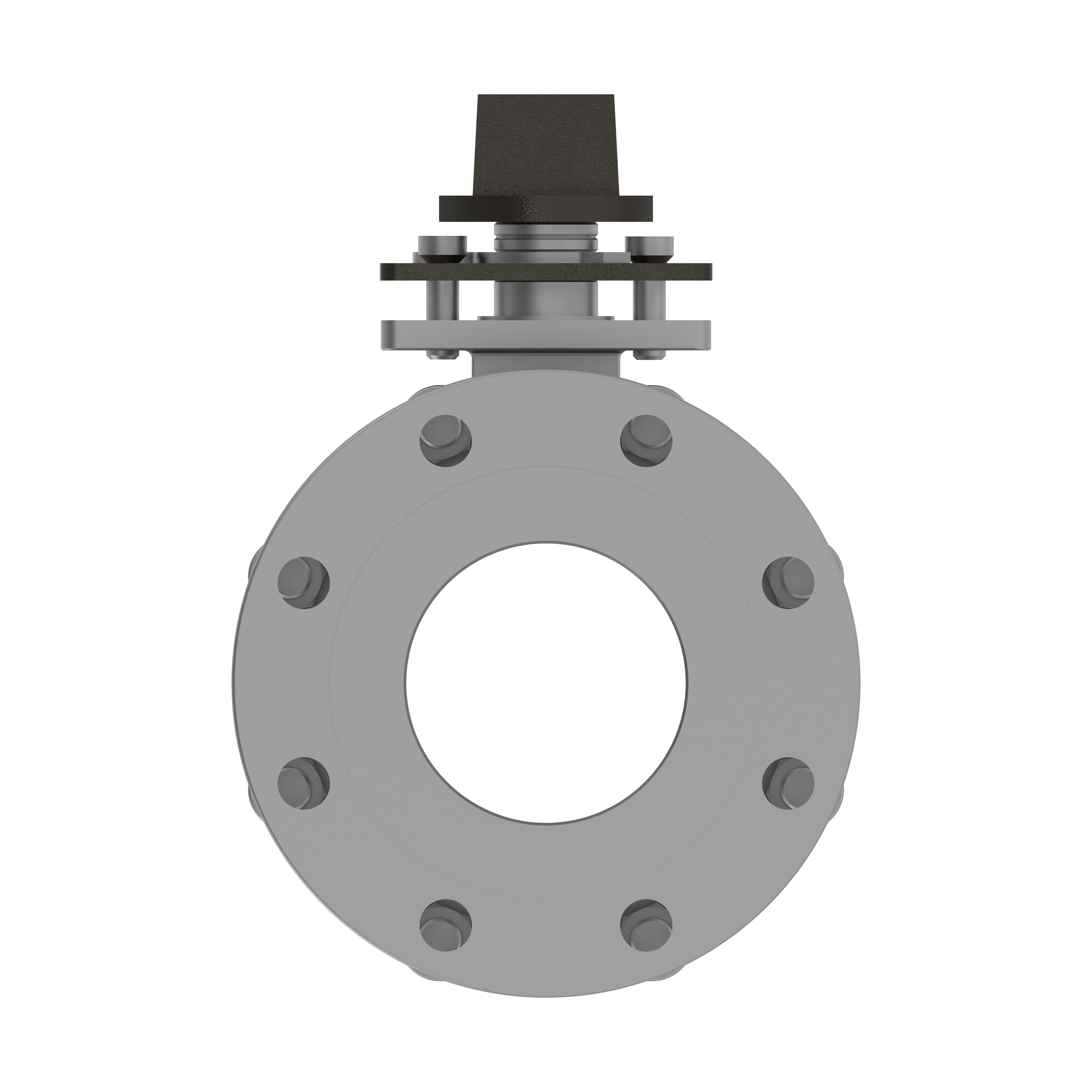

| Side View | Download |
