- A536 Grade 65-45-12 Ductile Iron Body
- PFA* fused solid stainless steel ball
- Blow-out Proof Stainless Steel Stem
- Reinforced PTFE Seats
- Lockable in Full Open or Closed Positions
- Mounting Pad for Easy Actuation
- Adjustable Length/Removable Handles to fit into areas of limited space
- Full Port
- Certified to meet the requirements of: NSF/ANSI 61 and NSF/ANSI 372
- 600 psi CWP
- 366° F
- This ductile iron ball valve has been engineered to replace any plug valve, carbon steel ball valve, or gate valve
| Series | Operator Nuts |
| Size | 4" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Gear Operator |
| Face to Face | 9" |
| Center of Port to Top | 9" |
| Center of Valve to Handle End | 16" |
| Port Diameter | 4" |
| Weight lbs | 68 |
| CV | 2500 |
| Mounting Pad | F10 |

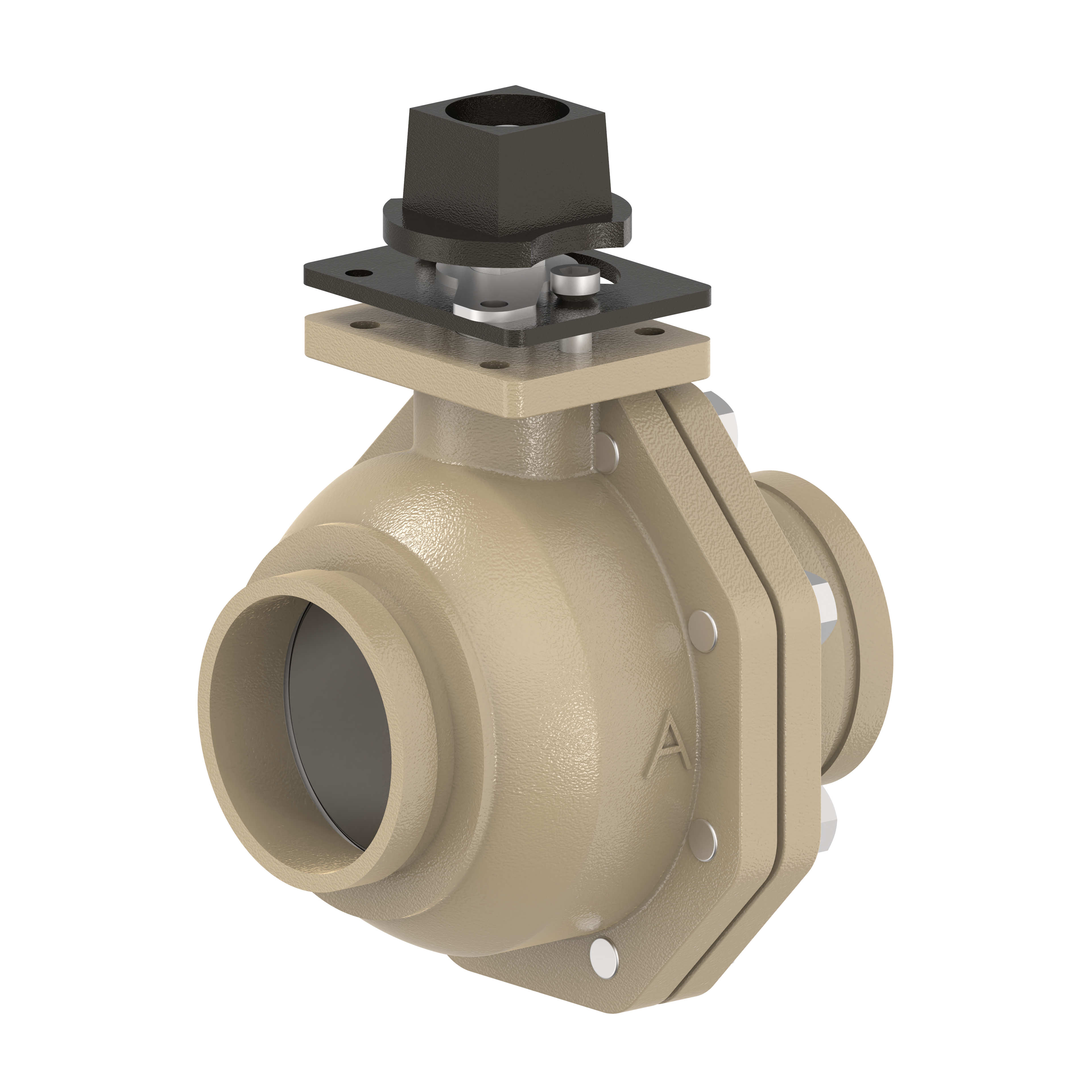

| Isometric View | Download |

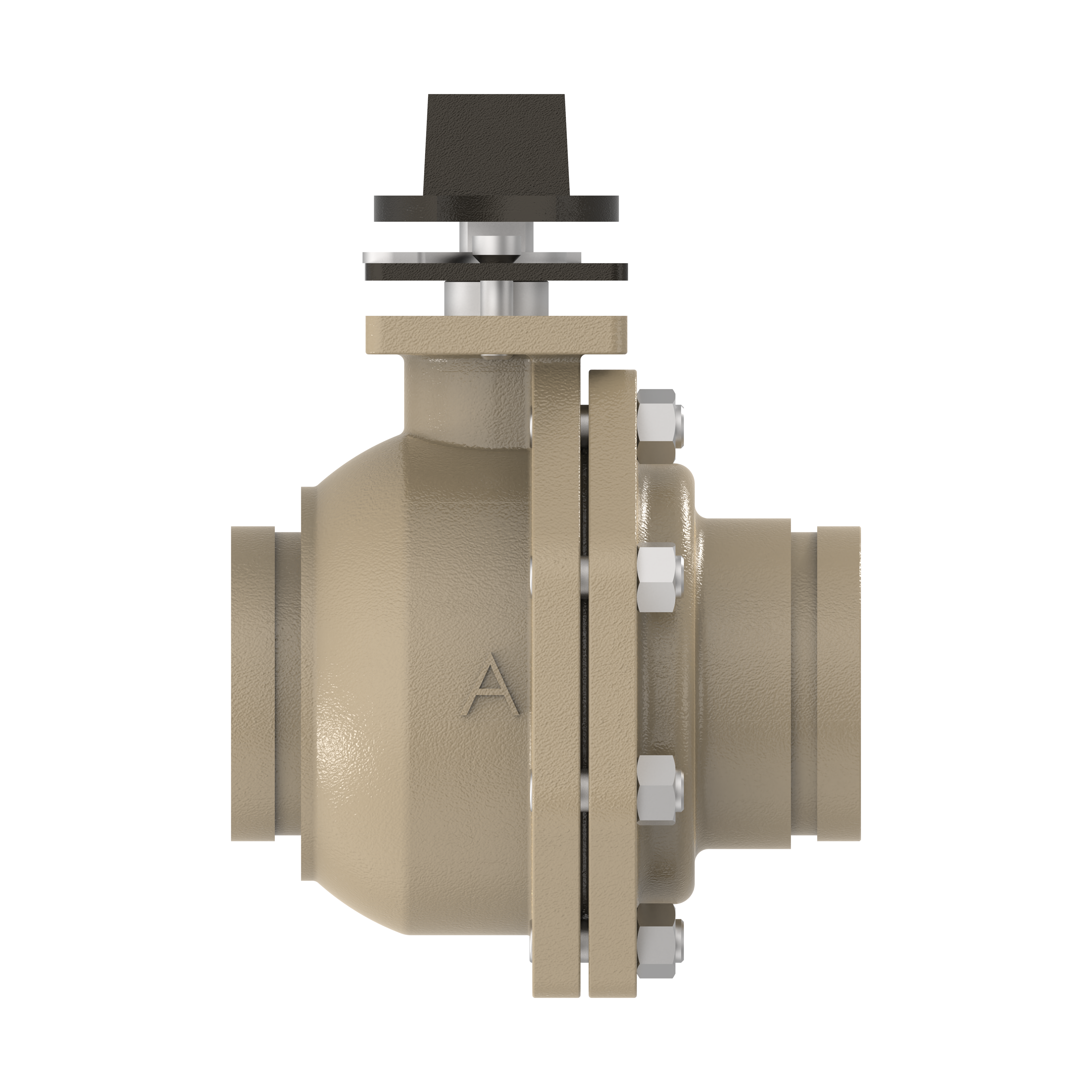

| Front View | Download |

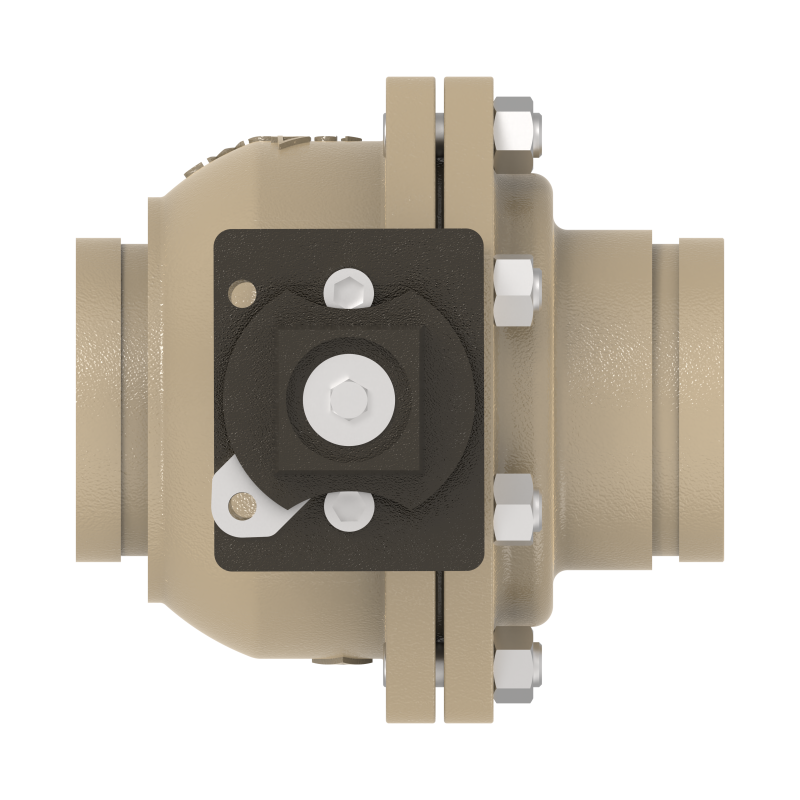

| Top View | Download |

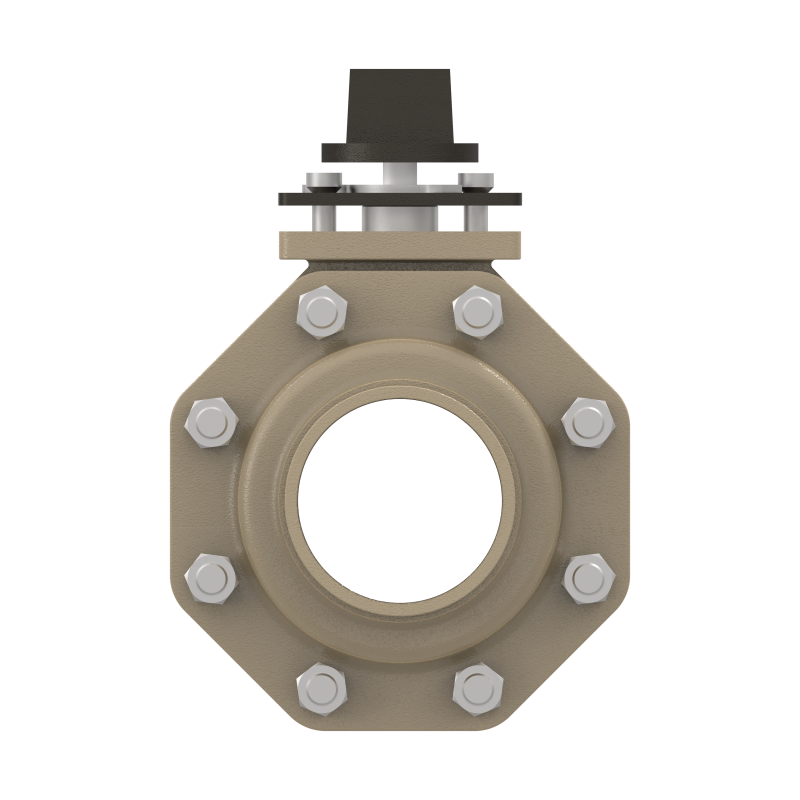

| Side View | Download |
